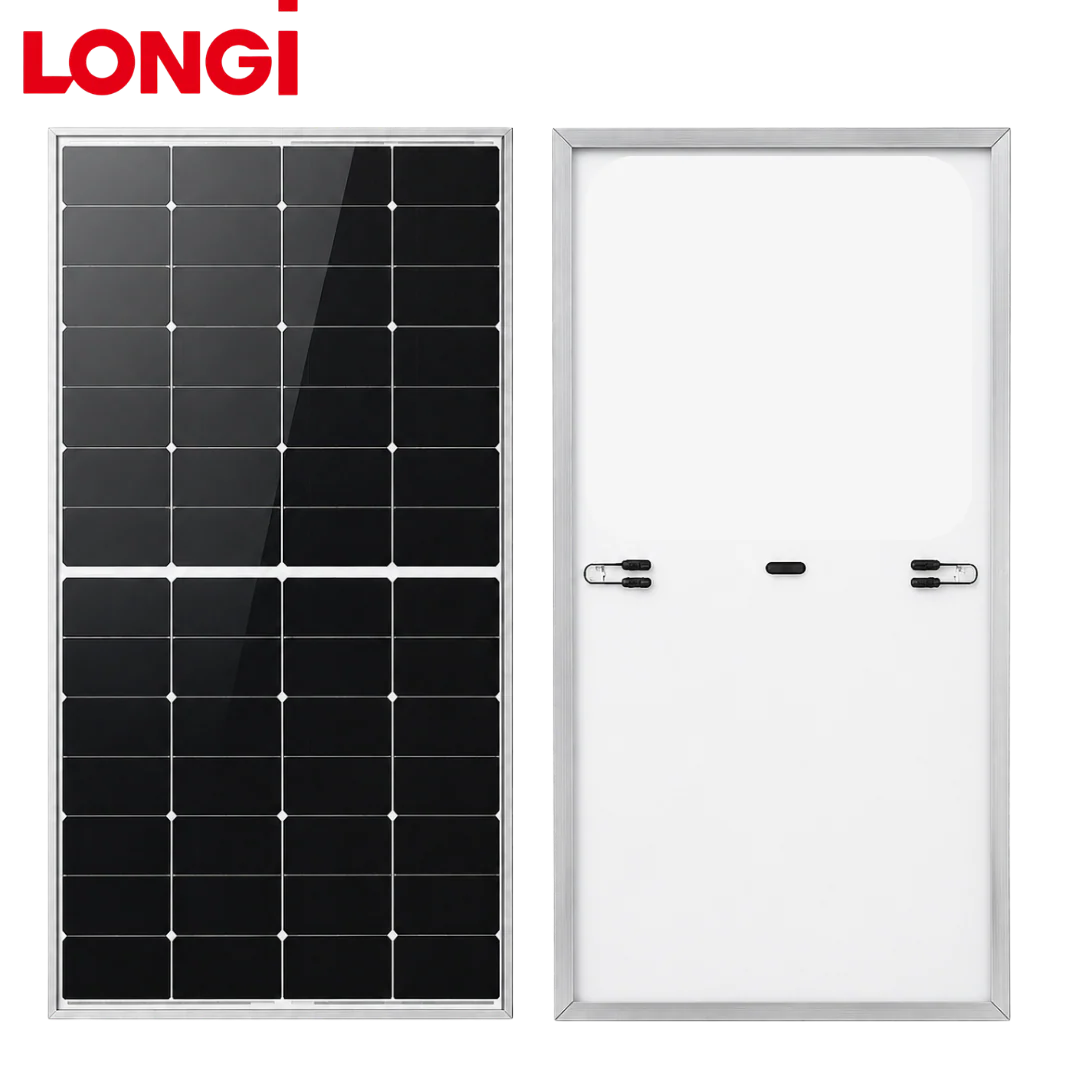

Longi Horizon 225W Mono Cell Solar Panel LR5-28HTH-225M
Longi Horizon 225W Mono Cell Solar Panel LR5-28HTH-225M
The Longi LR5-28HTH-225M is a high-efficiency, monocrystalline solar panel designed by LONGi Solar. Belonging to the Hi-MO X6 (Horizon) series, this 225W module uses advanced HPBC (Hybrid Passivated Back Contact) technology. It is primarily optimized for homes, small off-grid applications, and camera or security systems.

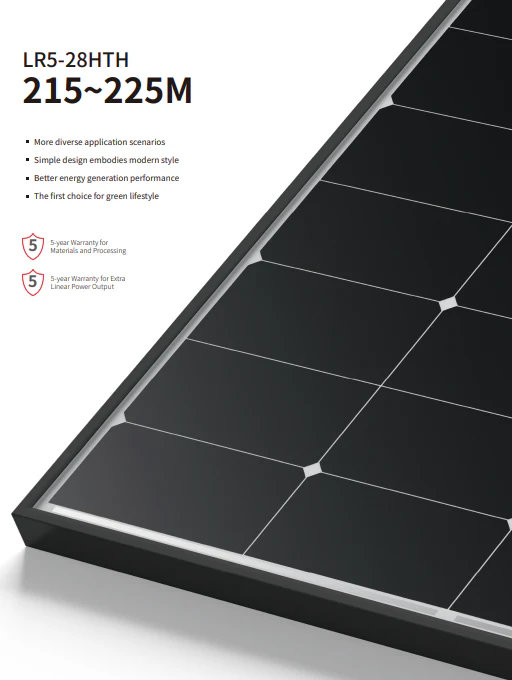

-More diverse application scenarios
-Simple design embodies modern style
-Better energy generation performance
-The first choice for green lifestyle
(Courier for panels are at your own risk)
- Rated Maximum Power: 225 W
- Panel Efficiency: Up to 21.6% to 22.3%
- Cell Type: Monocrystalline (HPBC)
- Cell Count: 144 cells
- Dimensions: 767 mm × 1350 mm × 30 mm
- Weight: 12.5 KG

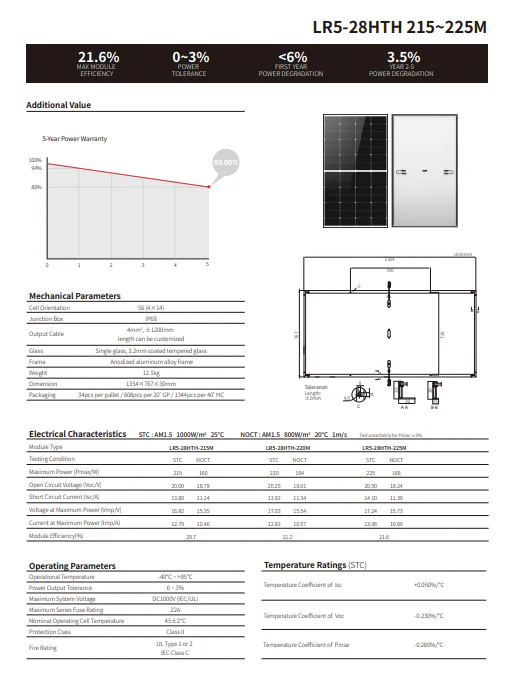

Nominal Max. Power (Pmax) 225 W
Opt. Operating Voltage (Vmp) 17.24 V
Opt. Operating Current (Imp) 13.06 A
Open Circuit Voltage (Voc) 20.50 V
Short Circuit Current (Isc) 14.10 A
Warranty :
5-year Warranty for
Materials and Processing
5-year Warranty for Ext
