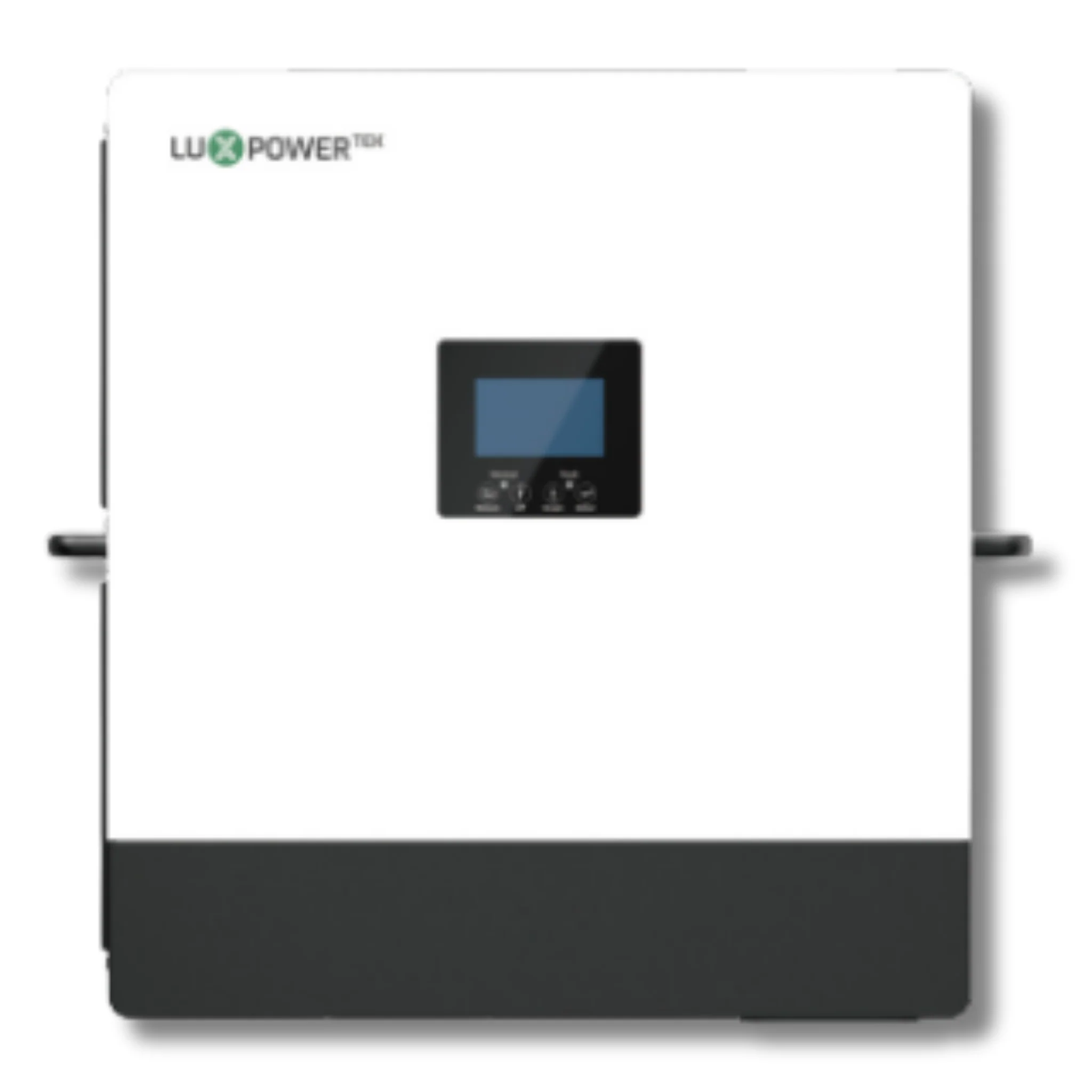

Luxpower 14kW Single Phase Eco Hybrid Inverter SNA2-EU-LT 14K

Luxpower 14kW Single Phase Eco Hybrid Inverter SNA2-EU-LT-14K



General Data :
Max. PV input: 24kW with 2 MPPTs
Max. charging and discharging current: 250A
Support up to 16 units in parallel for on/off grid
Lite Design for Easier Installation
Support Hybrid Working Modes
Intelligent Operating Mode to Lower Energy Costs & Quick ROI
Separate Gen Port for
- Auto start-stop
- Working with the existing grid-tied system
- Smart load management

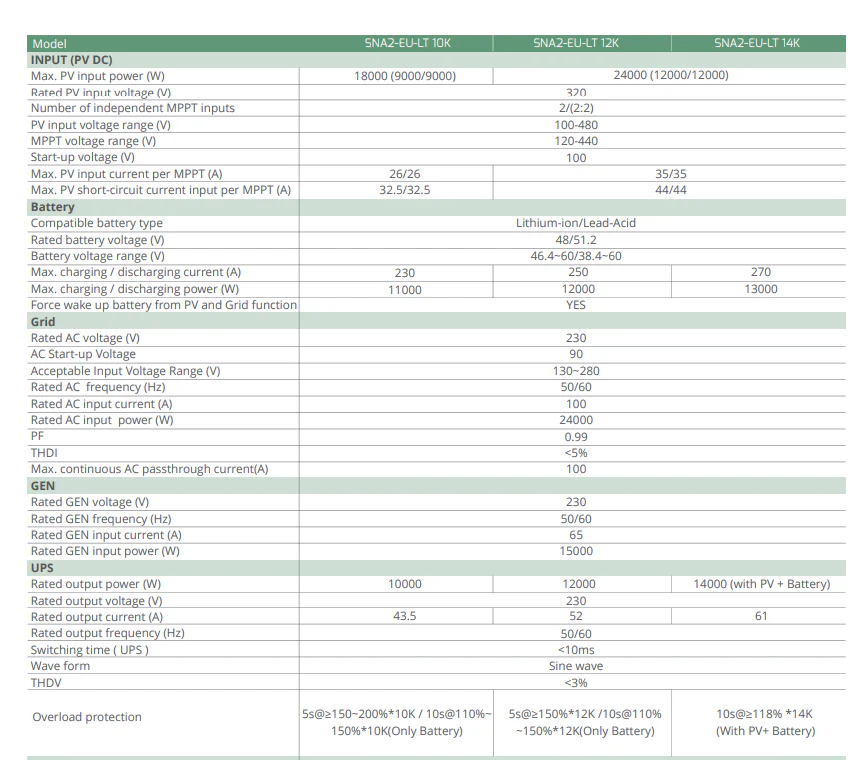

Specifications :

INPUT (PV DC)

Max. PV input power (W) : 24000 (12000/12000)

Rated PV input voltage (V) : 320

Number of independent MPPT inputs : 2/(2:2)

PV input voltage range (V) : 100-480

Grid

Rated AC voltage (V) : 230

AC Start-up Voltage : 90

Acceptable Input Voltage Range (V) :  130~280

Battery

Compatible battery type : Lithium-ion/Lead-Acid

Rated battery voltage (V) ; 48/51.2

Battery voltage range (V) : 46.4~60/38.4~60

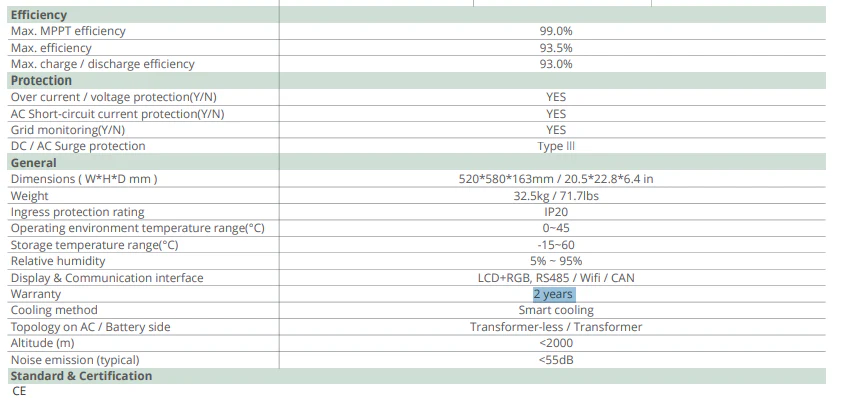

General

Dimensions ( W*H*D mm )  : 520*580*163mm / 20.5*22.8*6.4 in

Weight :  32.5kg / 71.7lbs

Warranty : 2 years
